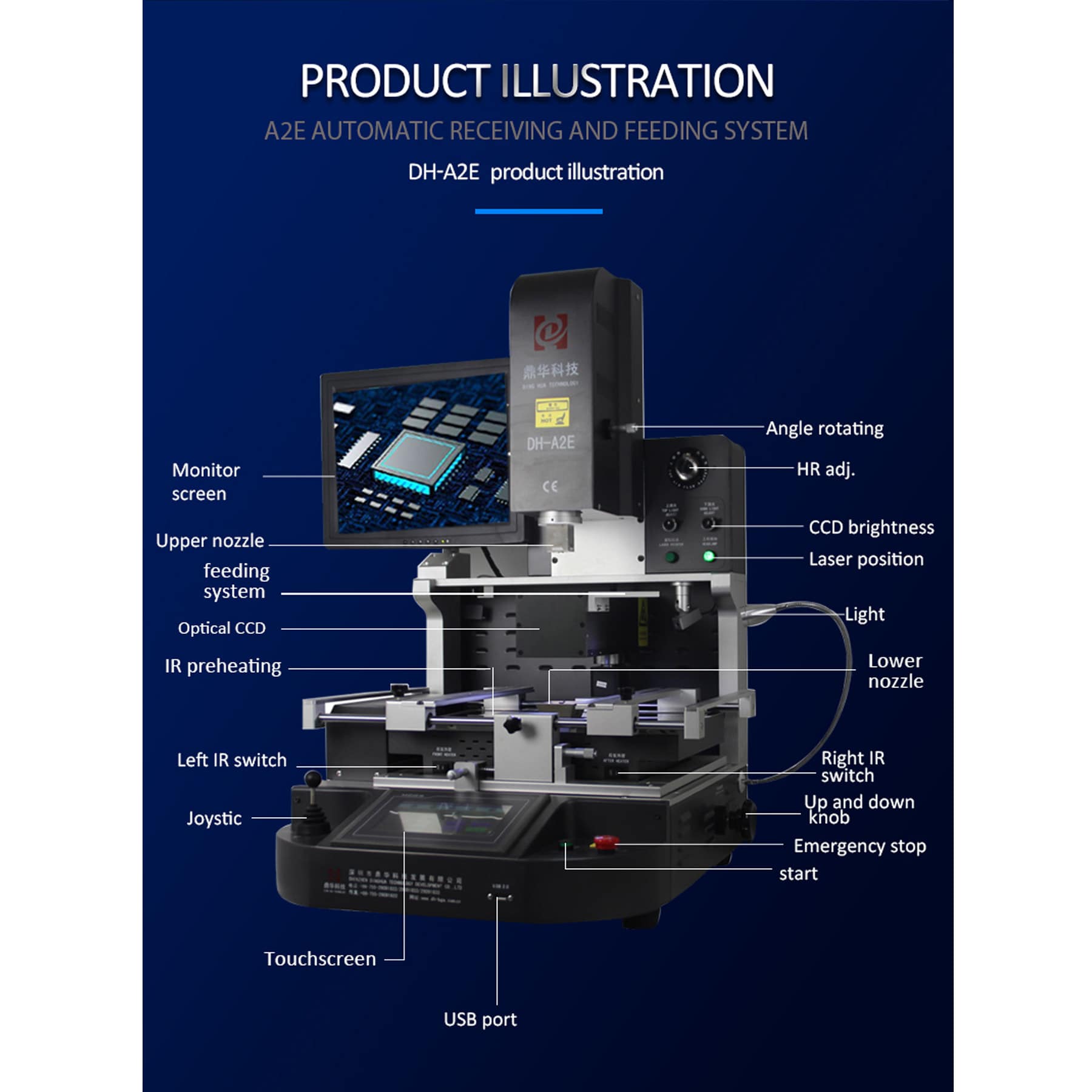

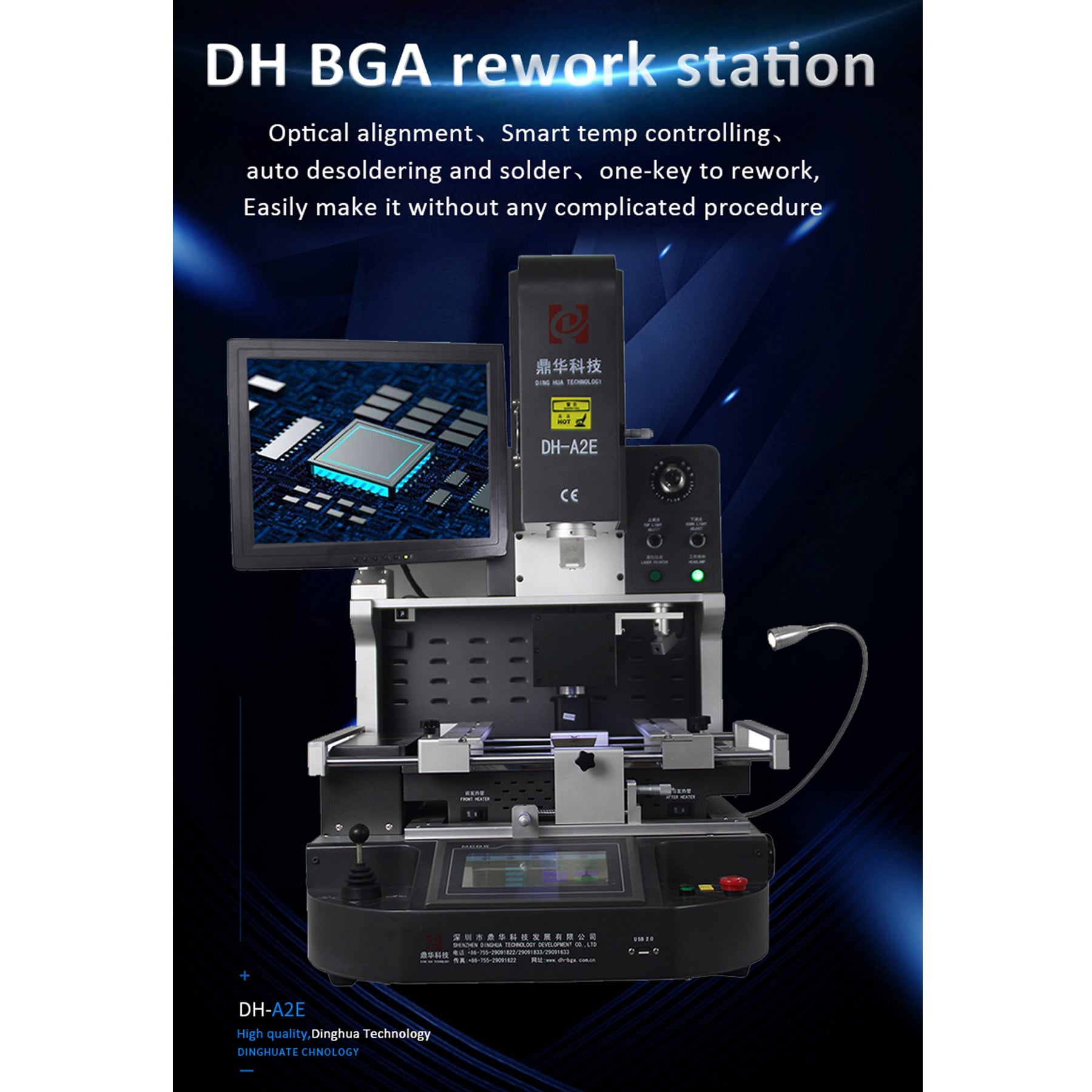

DESCRIPTION OF DH-A2E :
- Full Automatic and Manual Optional
- CCD Optimal Alignment System Placing Prision : 0.015mm
- Repair Success Rate :99%+
- Touch screen Control
- Laser Positioning/ Auto Feeding System
SPECIFICATION OF DH-A2E :
- Total Power : 5300W
- Top Heater : Hot air 200W
- Bottom Heater : Hot air 1200W,infrared 2700W
- Power Supply : AC220V ±10% 50/60Hz
- Dimension : L530*W670*H790 mm
- Positioning : V-grove PCB support,and with external universal fixture
- Temperature Control : K type thermocouple, closed loop control,independent heating
- PCB Size : Max 450*490mm,Min 22*22 mm
- Workbench Fine-Tuning : ±15mm forward/backward ±15mm right/left
- BGA Chip : 80*80-1*1mm
- Minimum Chip Spacing : 0.15mm
- Temp. Sensor : 1 optional
- Weight : 70kg
- Temperature Control
